package com.zshy.nacos.controller;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author zhouhengzhe
 * @description: 控制器
 * @date 2022/10/5 1:24
 * @since v1
 */
@RestController
@RefreshScope
public class TestController {

    @Value("${testStr}")
    private String testStr;

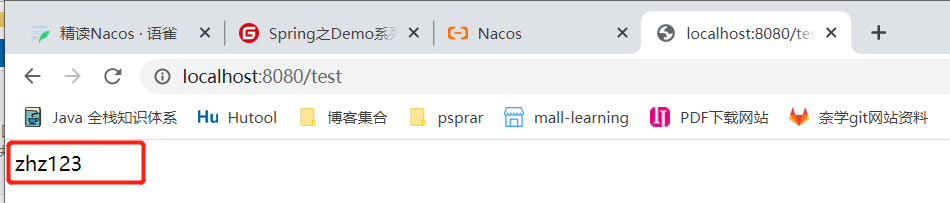

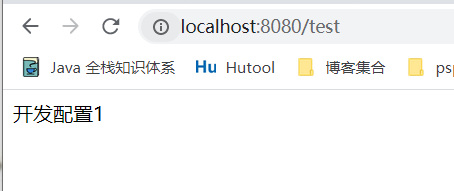

    @GetMapping("/test")
    public String test(){
        return testStr;
    }
}

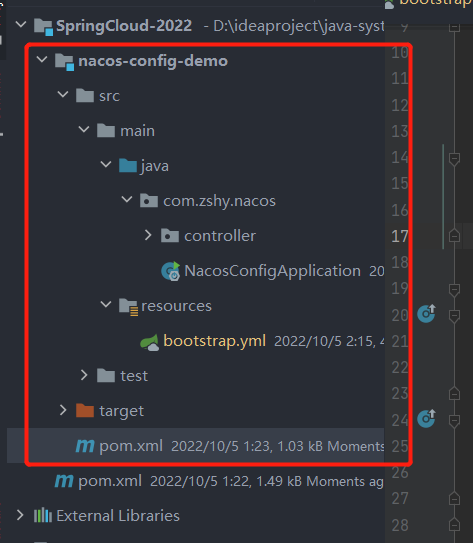

package com.zshy.nacos;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @author zhouhengzhe
 * @description: nacos config 启动类
 * @date 2022/10/5 1:23
 * @since v1
 */
@SpringBootApplication
public class NacosConfigApplication {
    public static void main(String[] args) {
        SpringApplication.run(NacosConfigApplication.class, args);
    }
}

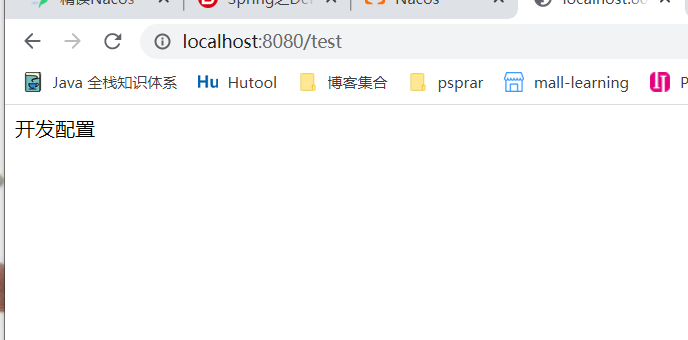

package com.zshy.nacos.controller;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author zhouhengzhe
 * @description: 控制器
 * @date 2022/10/5 1:24
 * @since v1
 */
@RestController
@RefreshScope
public class TestController {

    @Value("${testConfig}")
    private String testConfig;

    @GetMapping("/test")
    public String test(){
        return testConfig;
    }
}

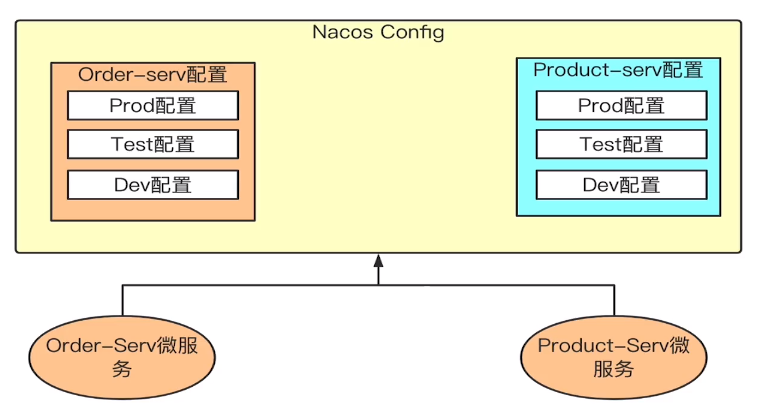

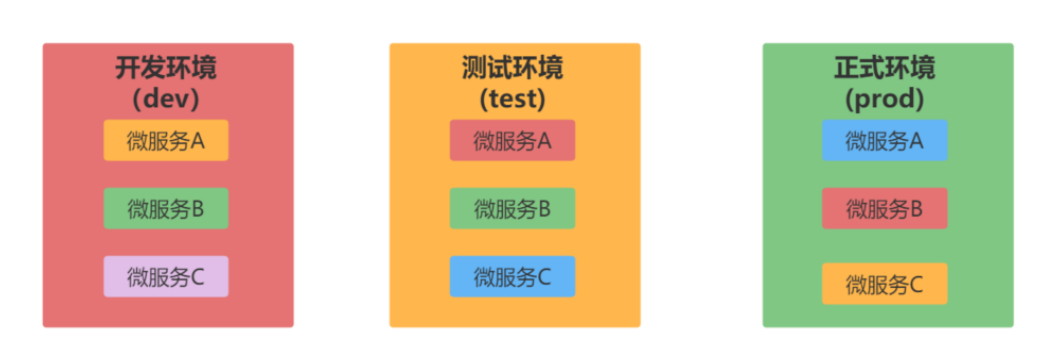

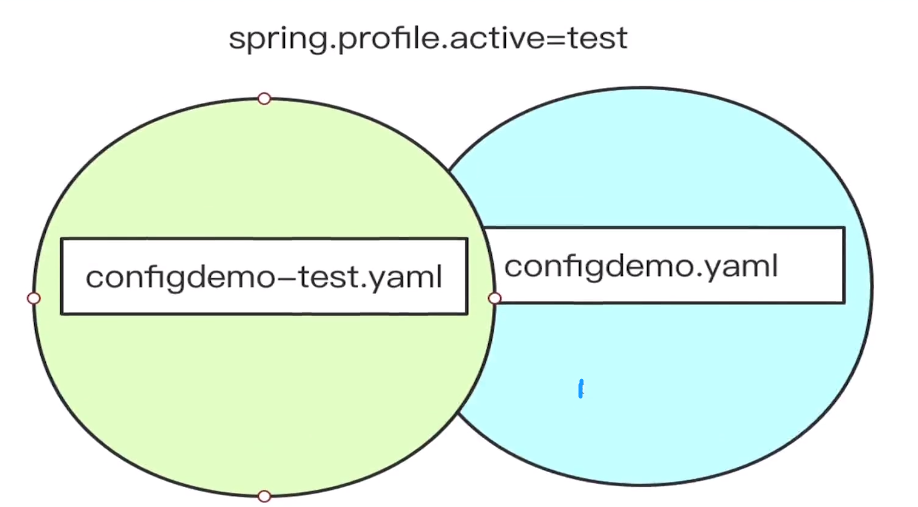

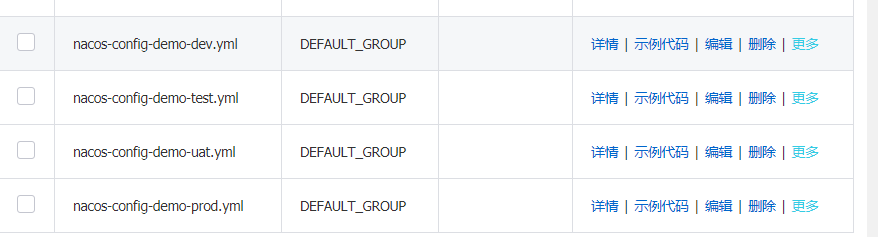

# dev/test/uat/prod四选一
java -jar xxx.jar -Dspring.profiles.active=dev/test/uat/prod

package com.zshy.nacos.controller;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author zhouhengzhe
 * @description: 控制器
 * @date 2022/10/5 1:24
 * @since v1
 */
@RestController
@RefreshScope
public class TestController {

    @Value("${testConfig}")
    private String testConfig;

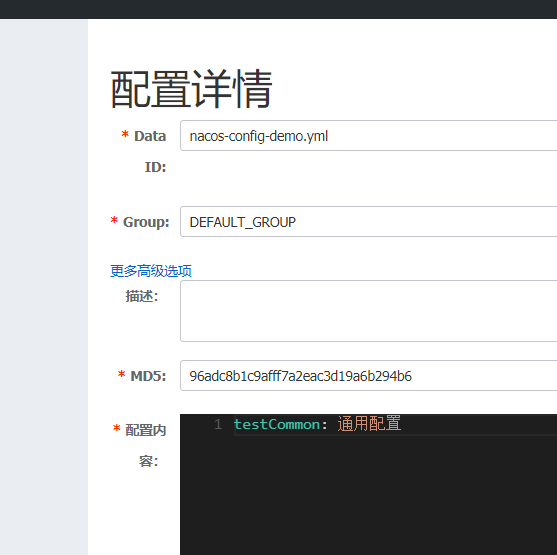

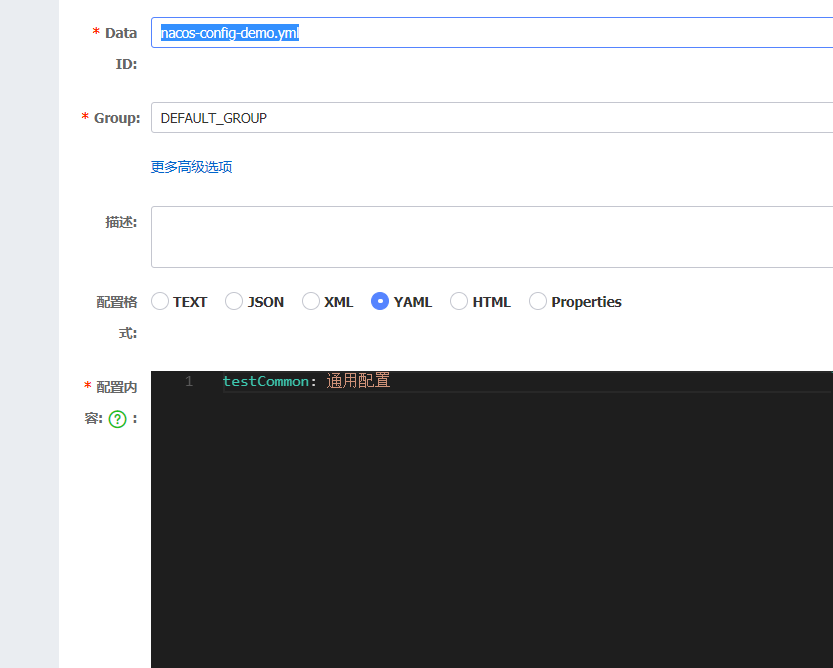

    @Value("${testCommon}")
    private String testCommon;

    @GetMapping("/test")
    public String test(){
        return testConfig + "/t"+ testCommon;
    }
}

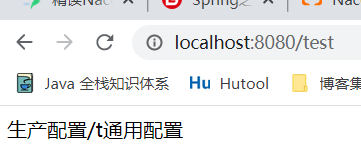

package com.zshy.nacos.controller;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
* @author zhouhengzhe
* @description: 控制器
* @date 2022/10/5 1:24
* @since v1
*/
@RestController
    @RefreshScope
    public class TestController {

        @Value("${testConfig}")
        private String testConfig;

        @Value("${testCommon}")
        private String testCommon;

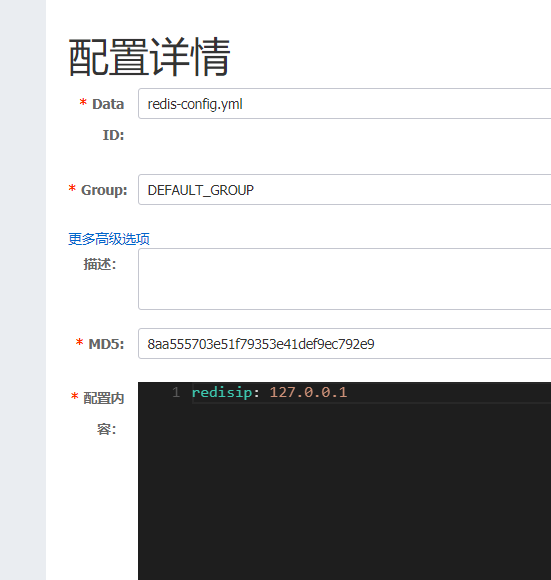

        @Value("${redisip}")
        private String redisip;

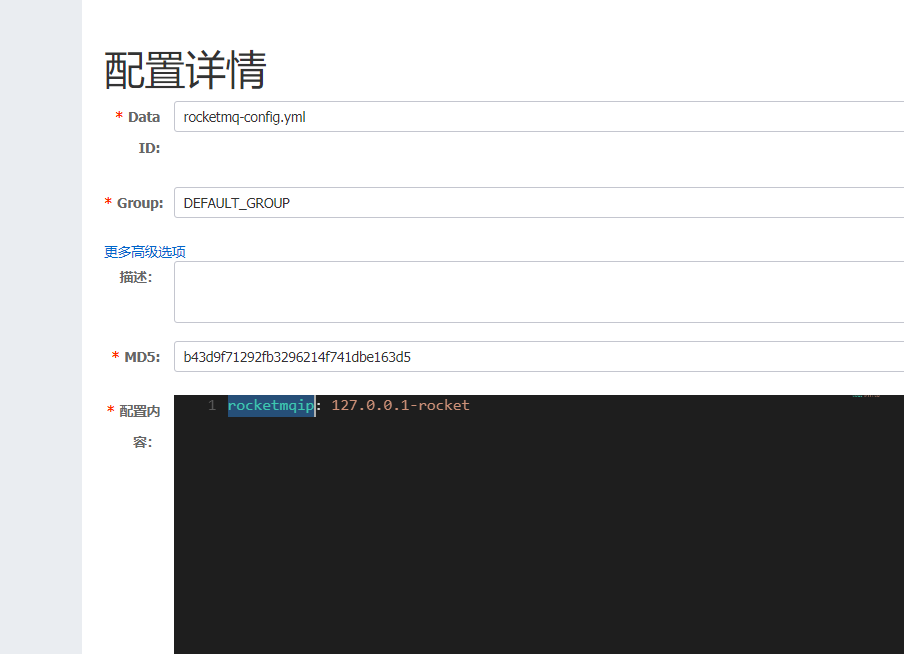

        @Value("${rocketmqip}")
        private String rocketmqip;

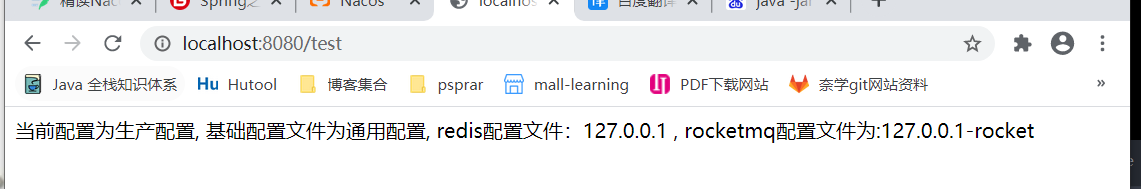

        @GetMapping("/test")
        public String test() {
            return String.format("当前配置为%s,\t 基础配置文件为%s,\tredis配置文件：%s ,\t rocketmq配置文件为:%s",
                                 testConfig, testCommon, redisip, rocketmqip);
        }
    }

@Configuration(proxyBeanMethods = false)
//表示nacos配置中心是自动开启的
@ConditionalOnProperty(name = "spring.cloud.nacos.config.enabled", matchIfMissing = true)
public class NacosConfigBootstrapConfiguration {

	/**
	 * 是否开启了配置属性的bean
	 * @return
	 */
	@Bean
	@ConditionalOnMissingBean
	public NacosConfigProperties nacosConfigProperties() {
		return new NacosConfigProperties();
	}

	/**
	 * Nacos配置管理器，接收一个（依赖于）NacosConfigProperties，
	 * 并且创建（通过NacosFactory.createConfigService）、管理（提供getter）ConfigServer（配置服务器）对象。
	 * @param nacosConfigProperties
	 * @return
	 */
	@Bean
	@ConditionalOnMissingBean
	public NacosConfigManager nacosConfigManager(
			NacosConfigProperties nacosConfigProperties) {
		//nacos config管理类
		return new NacosConfigManager(nacosConfigProperties);
	}

	/**
	 * 1、Nacos Config通过使用Spring Cloud提供的PropertySourceLocator进行资源定位。
	 * 	  Nacos创建其实现类NacosPropertySourceLocator定位配置服务器上的配置文件。
	 * 2、PropertySourceLocator让spring读取我们自定义的配置文件（注册到Spring Environment)，
	 * 	  然后使用@Value注解即可读取到配置文件中的属性，这解释了为什么Nacos等配置中心可以直接使用Value注解进行配置的读取。

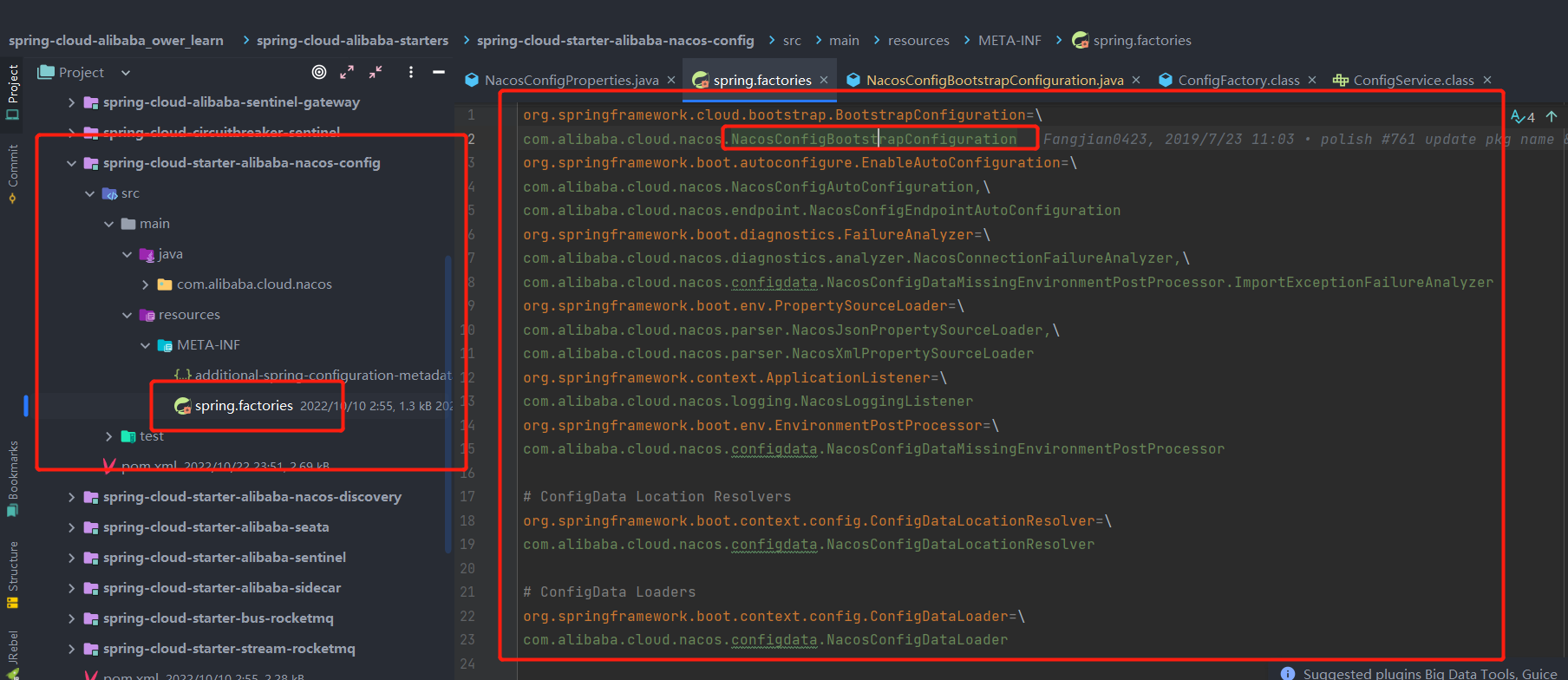

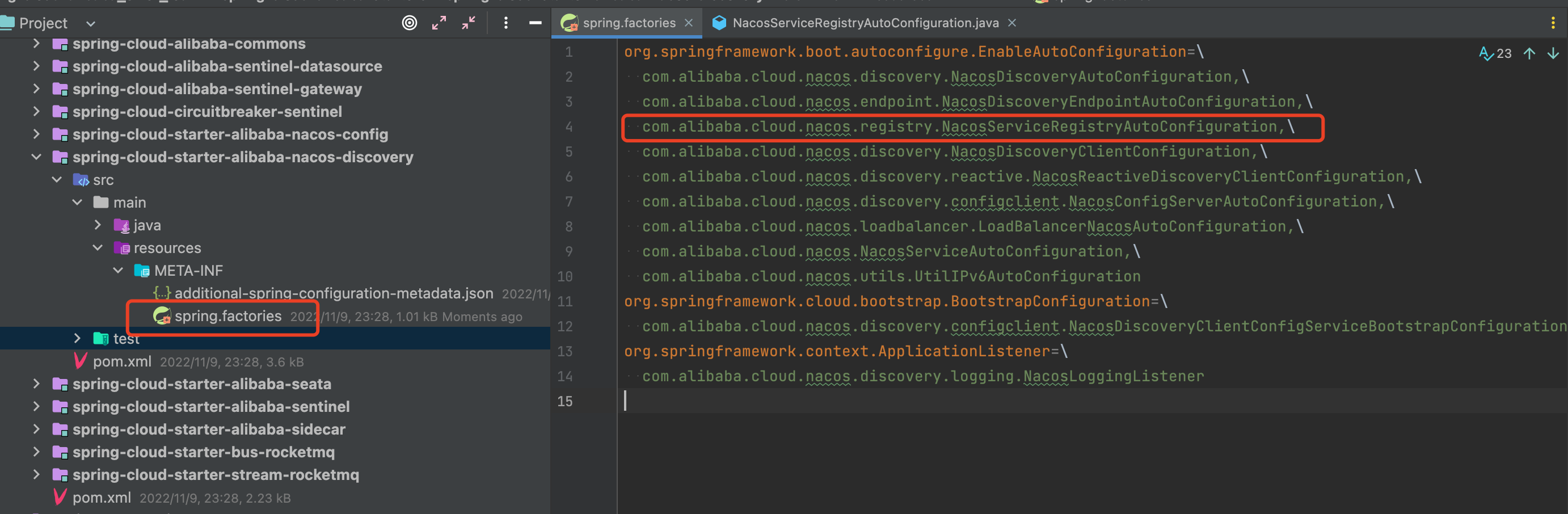

	 * 	  值得一提，这是基于SPI（Service Provider Interface）机制的，需要在META-INF/spring.factories中
	 * 	  定义BootstrapConfiguration**，所以Nacos Config也实现了一个BootstrapConfiguration，
	 * 	  其中就向Spring容器注册了NacosPropertySourceLocator这个Bean。
	 * 3、PropertySourceLocator中提供了方法locate，方法传入一个Environment对象（当前Spring应用环境），
	 * 	  返回一个PropertySource对象（配置源）。在Nacos实现的定位器中实现了从配置服务器加载配置的功能。分析源码得：
	 * 	  1、从NacosConfigManager获取ConfigServer对象，如果为空，返回null。
	 * 	  2、获取超时时间（spring.cloud.nacos.config.timeout）及配置文件名称（spring.cloud.nacos.config.name），
	 * 	  如未指定名称则使用前缀（spring.cloud.nacos.config.prefix），如果还是没有指定则使用应用名（spring.application.name）。
	 * 	  3、创建CompositePropertySource（表示一组配置源，继承于PropertySource，Name为NACOS）。
	 * 	  4、加载共享配置（loadSharedConfiguration）
	 * 	  	4.1、从配置文件中获取spring.cloud.nacos.config.shared-configs中的配置文件
	 * 	  	4.2、通过NacosPropertySourceBuilder构建配置源（如果可刷新的配置源不为0个（代表已加载过配置源）且不开启自动刷新，
	 * 	  	     从配置源仓库（NacosPropertySourceRepository）中加载）
	 * 	  	4.3、存入NacosPropertySourceRepository
	 * 	  5、加载拓展配置（loadExtConfiguration），类似于加载共享配置。
	 * 	  6、加载应用配置（loadApplicationConfiguration）
	 * 	  	 6.1、获取配置文件格式（spring.cloud.nacos.config.file-extension）
	 * 	 	 6.2、获取组（spring.cloud.nacos.config.group）
	 * 	  	 6.3、使用步骤2中获取的配置文件名称直接加载一次，存入NacosPropertySourceRepository
	 * 	  	 6.4、加上文件类型的后缀名加载一次，存入NacosPropertySourceRepository
	 * 	  	 6.5、对于所有活动的配置文件（Environment.getActiveProfiles）使用文件名-配置文件后缀.文件类型的作为配置名称进行加载，
	 * 	  		  存入NacosPropertySourceRepository
	 * 	  7、返回CompositePropertySource
	 *
	 * @param nacosConfigManager
	 * @return
	 */
	@Bean
	public NacosPropertySourceLocator nacosPropertySourceLocator(
			NacosConfigManager nacosConfigManager) {
		return new NacosPropertySourceLocator(nacosConfigManager);
	}

	/**
	 * Compatible with bootstrap way to start.
	 * 与启动方式兼容。
	*/
	@Bean
	@ConditionalOnMissingBean(search = SearchStrategy.CURRENT)
	@ConditionalOnNonDefaultBehavior
	public ConfigurationPropertiesRebinder smartConfigurationPropertiesRebinder(
			ConfigurationPropertiesBeans beans) {
		// If using default behavior, not use SmartConfigurationPropertiesRebinder.
		// Minimize te possibility of making mistakes.
		return new SmartConfigurationPropertiesRebinder(beans);
	}
}

@Bean
	@ConditionalOnMissingBean
	public NacosConfigManager nacosConfigManager(
			NacosConfigProperties nacosConfigProperties) {
		//nacos config管理类
		return new NacosConfigManager(nacosConfigProperties);
	}

static ConfigService createConfigService(
			NacosConfigProperties nacosConfigProperties) {
		if (Objects.isNull(service)) {
			synchronized (NacosConfigManager.class) {
				try {
					if (Objects.isNull(service)) {
						//创建一个服务
						/**

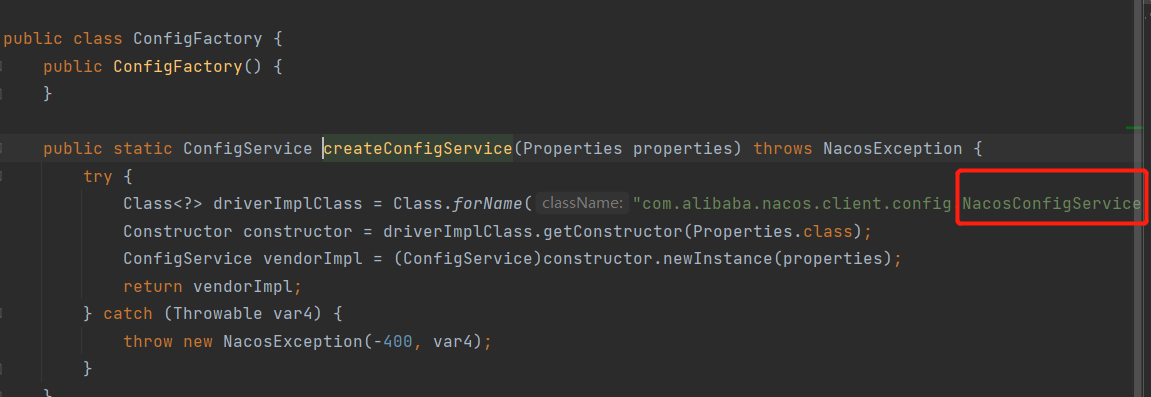

						 * ConfigFactory:用于创建ConfigService，只有两个方法分别通过Porperties和serverAddr来创建配置服务。
						 * 				 但是其创建配置服务的具体实现在Porperty中（serverAddr被封装为Porperties）。

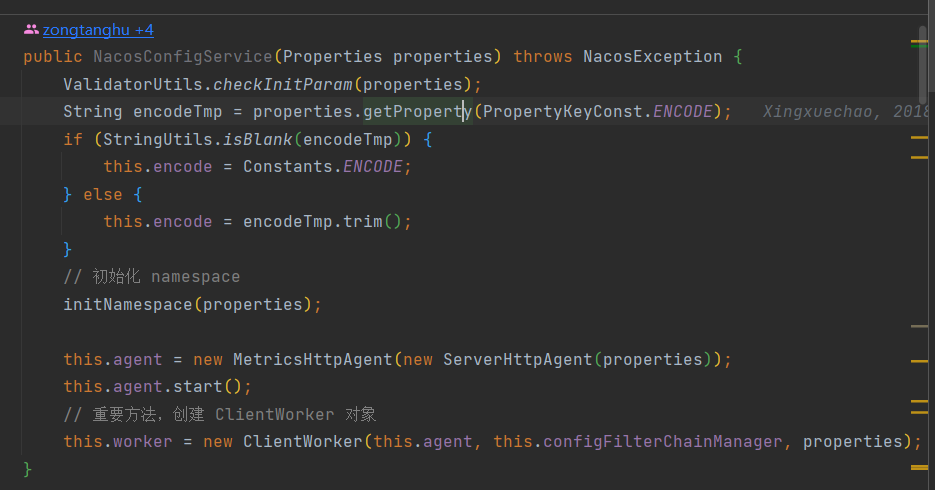

						 * 	1、通过反射获取了NacosConfigService（ConfigService的具体实现）这个类
						 *  2、调用类的构造方法创建实例（传入Porperties）
						 * 		1、检查Properties中CONTEXT_PATH属性是不是合法（不为空且没有两个’/'连在一起）
						 * 		2、从Properties中拿到编码默认为（UTF-8）
						 * 		3、从Properties中取出并且构造为命名空间放回Properties（是为了整合多租户和云端解析）
						 * 		4、创建ConfigFilterChainManager对象，这个类实现了IConfigFilterChain接口，管理一组IConfigFilter（按顺序对过滤器排序，内部将执行过滤器链任务委托给一个VirtualFilterChain实现）。创建时使用JDK6引入的ServiceLoader查找IConfigFilter。
						 * 		5、创建一个agent（MetricsHttpAgent），用于与服务器进行交互（基于HTTP协议），封装了通信细节。
						 * 		6、创建ClientWorker，提供了getServerConfig的实现，用于从配置服务器获取指定配置。
						 */
						service = NacosFactory.createConfigService(
								//配置服务属性
								nacosConfigProperties.assembleConfigServiceProperties());
					}
				}
				catch (NacosException e) {
					log.error(e.getMessage());
					throw new NacosConnectionFailureException(
							nacosConfigProperties.getServerAddr(), e.getMessage(), e);
				}
			}
		}
		return service;
	}

public ClientWorker(final HttpAgent agent, final ConfigFilterChainManager configFilterChainManager,
                        final Properties properties) {
        this.agent = agent;
        this.configFilterChainManager = configFilterChainManager;

        // Initialize the timeout parameter

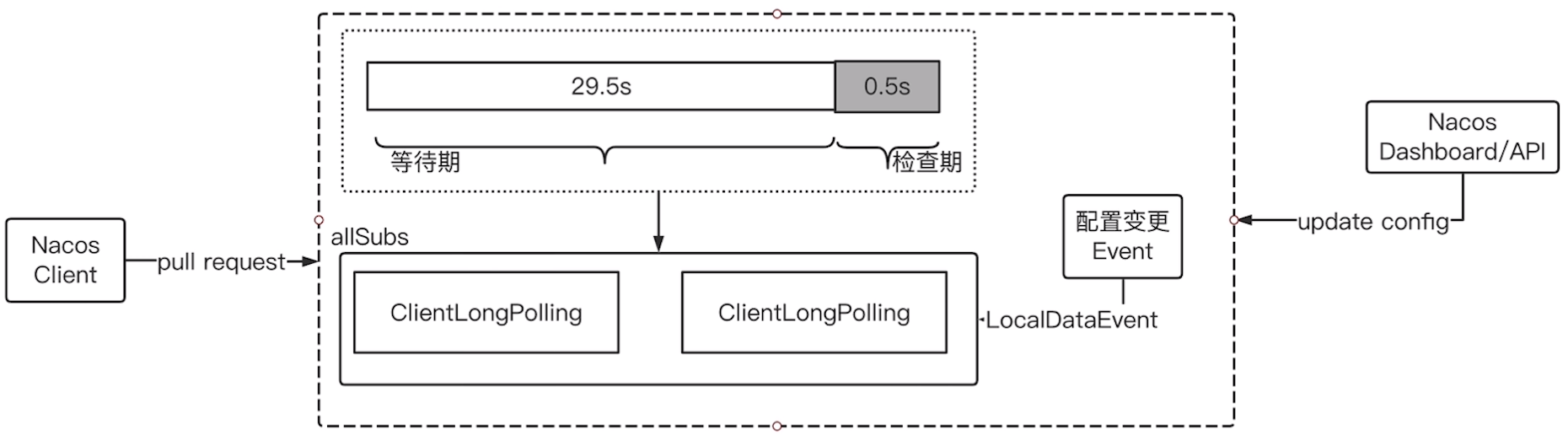

        // 里面初始化了长轮询的超时时间，默认为 30s
        init(properties);

        this.executor = Executors.newScheduledThreadPool(1, new ThreadFactory() {
            @Override
            public Thread newThread(Runnable r) {
                Thread t = new Thread(r);
                t.setName("com.alibaba.nacos.client.Worker." + agent.getName());
                t.setDaemon(true);
                return t;
            }
        });

        this.executorService = Executors
            .newScheduledThreadPool(Runtime.getRuntime().availableProcessors(), new ThreadFactory() {
                @Override
                public Thread newThread(Runnable r) {
                    Thread t = new Thread(r);
                    t.setName("com.alibaba.nacos.client.Worker.longPolling." + agent.getName());
                    t.setDaemon(true);
                    return t;
                }
            });

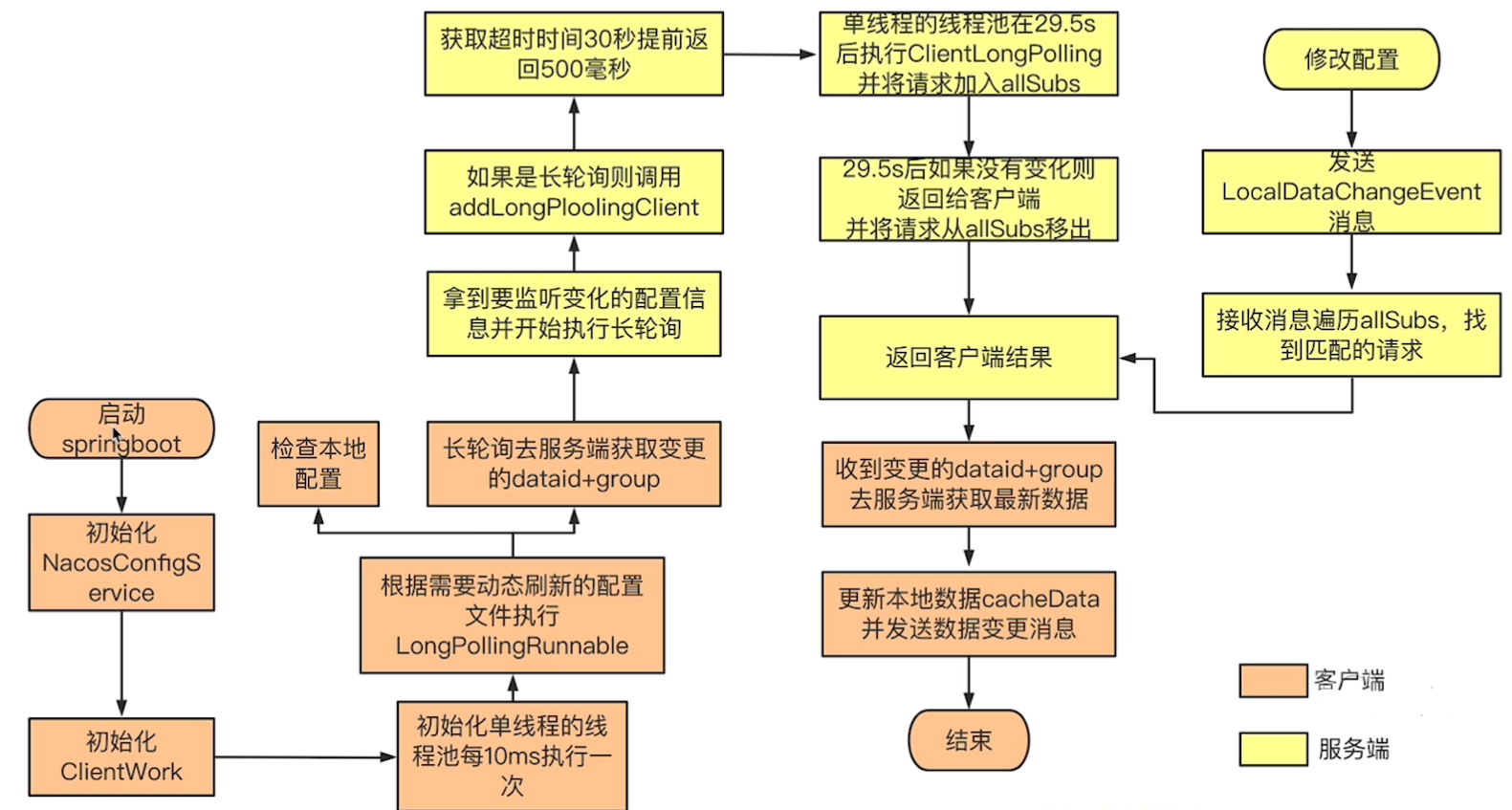

        // 重要方法，初始化一个线程池，延迟 1 毫秒启动，之后每隔 10 毫秒执行一次，调用 checkConfigInfo() 方法
        this.executor.scheduleWithFixedDelay(new Runnable() {
            @Override
            public void run() {
                try {
                    checkConfigInfo();
                } catch (Throwable e) {
                    LOGGER.error("[" + agent.getName() + "] [sub-check] rotate check error", e);
                }
            }
        }, 1L, 10L, TimeUnit.MILLISECONDS);
    }

public void checkConfigInfo() {
        // Dispatch taskes   分派任务(监听队列)
        int listenerSize = cacheMap.get().size();
        // Round up the longingTaskCount.
        //向上取整，如果当前配置文件数小于3000，就只会用一个长轮训类，如果大于3000就会再创建一个。
        //(int)Math.ceil(2999/3000D)=1
        //(int)Math.ceil(5999/3000D)=2
        int longingTaskCount = (int) Math.ceil(listenerSize / ParamUtil.getPerTaskConfigSize());
        if (longingTaskCount > currentLongingTaskCount) {
            for (int i = (int) currentLongingTaskCount; i < longingTaskCount; i++) {
                // The task list is no order.So it maybe has issues when changing.
                //3000以内开一个长轮训线程，3000~6000开两， 创建了长轮询对象 LongPollingRunnable ，交由线程池执行
                executorService.execute(new LongPollingRunnable(i));
            }
            currentLongingTaskCount = longingTaskCount;
        }
    }

/**
     * cacheMap 的主要作用是用来存储监听变更的缓存集合，为
     * 了保障线程安全使用了 ConcurrentHashMap 的结构。key 被称为 groupKey ，
     * 是由 dataId，group，tenant（租户）拼接而成的字符串； value 为 CacheData 对象，
     * 每个 dataId 都会持有一个 CacheData 对象。
     *
     *
     *
     * groupKey -> cacheData.
     * <p>
     * groupKey：dataId+group+tenant
     * cacheData：
     */
    private final AtomicReference<Map<String, CacheData>> cacheMap = new AtomicReference<Map<String, CacheData>>(
        new HashMap<String, CacheData>());

public void run() {
            //缓存的数据
            List<CacheData> cacheDatas = new ArrayList<CacheData>();
            //初始化的緩存集合（正在初始化CacheList）
            List<String> inInitializingCacheList = new ArrayList<String>();
            try {
                // check failover config  检查故障转移配, 遍历 cacheMap
                for (CacheData cacheData : cacheMap.get().values()) {

                    /**
                     * cacheData.getTaskId() ：小于3000为0，大于等于3000小于6000为1，以此类推
                     * taskId： 3000以内开一个长轮训线程，3000~6000开两个长轮训线程
                     * 第一次刚进来的时候是添加
                     */
                    if (cacheData.getTaskId() == taskId) {
                        cacheDatas.add(cacheData);
                        try {
                            // 校验本地文件
                            /**
                             * ①如果不使用本地配置，并且本地文件路径存在
                             *      1、从本地缓存文件中获取配置信息
                             *      2、设置 useLocalConfigInfo 为 true
                             *      3、设置本地配置的版本信息
                             *②如果本地使用本地配置，但是本地文件路径不存在
                             *      1、设置 useLocalConfigInfo 为 false 后直接返回
                             *③如果使用本地配置，本地缓存文件路径存在, 并且缓存的时间跟文件的更新时间不一致，说明有改变
                             *      1、设置 useLocalConfigInfo 为 true
                             *      2、设置本地配置的版本信息
                             *
                             */
                            checkLocalConfig(cacheData);
                            if (cacheData.isUseLocalConfigInfo()) {
                                //如果 isUseLocalConfigInfo 返回为 true, 表示缓存和本地配置不一致
                                cacheData.checkListenerMd5();
                            }
                        } catch (Exception e) {
                            LOGGER.error("get local config info error", e);
                        }
                    }
                }

                // check server config,调用三方服务/listener接口
                // 调用服务端接口：/v1/cs/configs/listener
                List<String> changedGroupKeys = checkUpdateDataIds(cacheDatas, inInitializingCacheList);
                if (!CollectionUtils.isEmpty(changedGroupKeys)) {
                    LOGGER.info("get changedGroupKeys:" + changedGroupKeys);
                }

                for (String groupKey : changedGroupKeys) {
                    String[] key = GroupKey.parseKey(groupKey);
                    String dataId = key[0];
                    String group = key[1];
                    String tenant = null;
                    if (key.length == 3) {
                        tenant = key[2];
                    }
                    try {
                        /**

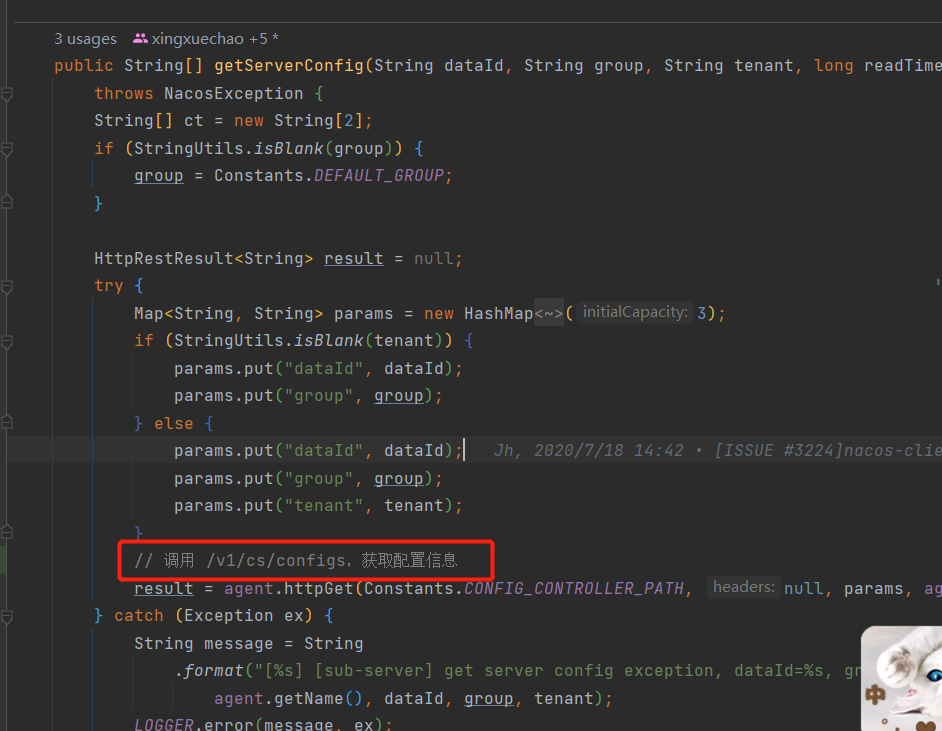

                         * checkUpdateDataIds() 方法执行完成后，得到了有更新的 changedGroupKeys，循环 changedGroupKeys 列表，调用 getServerConfig() 方法，获取服务端的配置：
                         */
                        String[] ct = getServerConfig(dataId, group, tenant, 3000L);
                        CacheData cache = cacheMap.get().get(GroupKey.getKeyTenant(dataId, group, tenant));
                        cache.setContent(ct[0]);
                        if (null != ct[1]) {
                            cache.setType(ct[1]);
                        }
                        LOGGER.info("[{}] [data-received] dataId={}, group={}, tenant={}, md5={}, content={}, type={}",
                            agent.getName(), dataId, group, tenant, cache.getMd5(),
                            ContentUtils.truncateContent(ct[0]), ct[1]);
                    } catch (NacosException ioe) {
                        String message = String
                            .format("[%s] [get-update] get changed config exception. dataId=%s, group=%s, tenant=%s",
                                agent.getName(), dataId, group, tenant);
                        LOGGER.error(message, ioe);
                    }
                }
                for (CacheData cacheData : cacheDatas) {
                    if (!cacheData.isInitializing() || inInitializingCacheList
                        .contains(GroupKey.getKeyTenant(cacheData.dataId, cacheData.group, cacheData.tenant))) {
                        cacheData.checkListenerMd5();
                        cacheData.setInitializing(false);
                    }
                }
                inInitializingCacheList.clear();

                executorService.execute(this);

            } catch (Throwable e) {

                // If the rotation training task is abnormal, the next execution time of the task will be punished
                LOGGER.error("longPolling error : ", e);
                executorService.schedule(this, taskPenaltyTime, TimeUnit.MILLISECONDS);
            }
        }

private void checkLocalConfig(CacheData cacheData) {
        final String dataId = cacheData.dataId;
        final String group = cacheData.group;
        final String tenant = cacheData.tenant;
        // 获取本地文件路径
        File path = LocalConfigInfoProcessor.getFailoverFile(agent.getName(), dataId, group, tenant);
        // ①如果不使用本地配置，并且本地文件路径存在
        if (!cacheData.isUseLocalConfigInfo() && path.exists()) {
            // 从本地缓存文件中获取配置信息
            String content = LocalConfigInfoProcessor.getFailover(agent.getName(), dataId, group, tenant);
            final String md5 = MD5Utils.md5Hex(content, Constants.ENCODE);
            // 设置 useLocalConfigInfo 为 true
            cacheData.setUseLocalConfigInfo(true);
            // 设置本地配置的版本信息
            cacheData.setLocalConfigInfoVersion(path.lastModified());
            cacheData.setContent(content);

            LOGGER.warn(
                "[{}] [failover-change] failover file created. dataId={}, group={}, tenant={}, md5={}, content={}",
                agent.getName(), dataId, group, tenant, md5, ContentUtils.truncateContent(content));
            return;
        }

        // If use local config info, then it doesn't notify business listener and notify after getting from server.
        // ②如果本地使用本地配置，但是本地文件路径不存在
        if (cacheData.isUseLocalConfigInfo() && !path.exists()) {
            // 设置 useLocalConfigInfo 为 false 后直接返回
            cacheData.setUseLocalConfigInfo(false);
            LOGGER.warn("[{}] [failover-change] failover file deleted. dataId={}, group={}, tenant={}", agent.getName(),
                dataId, group, tenant);
            return;
        }

        // When it changed.
         //③如果使用本地配置，本地缓存文件路径存在, 并且缓存的时间跟文件的更新时间不一致，说明有改变
        if (cacheData.isUseLocalConfigInfo() && path.exists() && cacheData.getLocalConfigInfoVersion() != path
            .lastModified()) {
            String content = LocalConfigInfoProcessor.getFailover(agent.getName(), dataId, group, tenant);
            final String md5 = MD5Utils.md5Hex(content, Constants.ENCODE);
            // 设置 useLocalConfigInfo 为 true
            cacheData.setUseLocalConfigInfo(true);
            //设置本地配置的版本信息
            cacheData.setLocalConfigInfoVersion(path.lastModified());
            cacheData.setContent(content);
            LOGGER.warn(
                "[{}] [failover-change] failover file changed. dataId={}, group={}, tenant={}, md5={}, content={}",
                agent.getName(), dataId, group, tenant, md5, ContentUtils.truncateContent(content));
        }
    }

void checkListenerMd5() {
        for (ManagerListenerWrap wrap : listeners) {
            if (!md5.equals(wrap.lastCallMd5)) {
                /**
                 * 如果 md5 值不一样，则发送数据变更通知，调用 safeNotifyListener 方法
                 */
                safeNotifyListener(dataId, group, content, type, md5, wrap);
            }
        }
    }

/**
     * 这个方法中，对 dataId 注册过监听的客户端推送变更后的数据内容。
     * 客户端接收通知后通过 receiveConfigInfo() 方法接收回调数据，处理自身业务。
     * @param dataId
     * @param group
     * @param content
     * @param type
     * @param md5
     * @param listenerWrap
     */
    private void safeNotifyListener(final String dataId, final String group, final String content, final String type,
            final String md5, final ManagerListenerWrap listenerWrap) {
        final Listener listener = listenerWrap.listener;
        // 创建一个 job 对象，用于异步执行
        Runnable job = new Runnable() {
            @Override
            public void run() {
                ClassLoader myClassLoader = Thread.currentThread().getContextClassLoader();
                ClassLoader appClassLoader = listener.getClass().getClassLoader();
                try {
                    if (listener instanceof AbstractSharedListener) {
                        AbstractSharedListener adapter = (AbstractSharedListener) listener;
                        adapter.fillContext(dataId, group);
                        LOGGER.info("[{}] [notify-context] dataId={}, group={}, md5={}", name, dataId, group, md5);
                    }
                    // 执行回调之前先将线程classloader设置为具体webapp的classloader，以免回调方法中调用spi接口是出现异常或错用（多应用部署才会有该问题）。
                    Thread.currentThread().setContextClassLoader(appClassLoader);

                    ConfigResponse cr = new ConfigResponse();
                    cr.setDataId(dataId);
                    cr.setGroup(group);
                    cr.setContent(content);
                    configFilterChainManager.doFilter(null, cr);
                    String contentTmp = cr.getContent();
                    listener.receiveConfigInfo(contentTmp);

                    // compare lastContent and content
                    // 如果是 AbstractConfigChangeListener ，创建 ConfigChangeEvent 对象
                    if (listener instanceof AbstractConfigChangeListener) {
                        //主要是把改变的文件和删除的文件找出来
                        Map data = ConfigChangeHandler.getInstance()
                                .parseChangeData(listenerWrap.lastContent, content, type);
                        ConfigChangeEvent event = new ConfigChangeEvent(data);
                        ((AbstractConfigChangeListener) listener).receiveConfigChange(event);
                        listenerWrap.lastContent = content;
                    }

                    listenerWrap.lastCallMd5 = md5;
                    LOGGER.info("[{}] [notify-ok] dataId={}, group={}, md5={}, listener={} ", name, dataId, group, md5,
                            listener);
                } catch (NacosException ex) {
                    LOGGER.error("[{}] [notify-error] dataId={}, group={}, md5={}, listener={} errCode={} errMsg={}",
                            name, dataId, group, md5, listener, ex.getErrCode(), ex.getErrMsg());
                } catch (Throwable t) {
                    LOGGER.error("[{}] [notify-error] dataId={}, group={}, md5={}, listener={} tx={}", name, dataId,
                            group, md5, listener, t.getCause());
                } finally {
                    Thread.currentThread().setContextClassLoader(myClassLoader);
                }
            }
        };

        final long startNotify = System.currentTimeMillis();
        try {
            if (null != listener.getExecutor()) {
                // 执行
                listener.getExecutor().execute(job);
            } else {
                job.run();
            }
        } catch (Throwable t) {
            LOGGER.error("[{}] [notify-error] dataId={}, group={}, md5={}, listener={} throwable={}", name, dataId,
                    group, md5, listener, t.getCause());
        }
        final long finishNotify = System.currentTimeMillis();
        LOGGER.info("[{}] [notify-listener] time cost={}ms in ClientWorker, dataId={}, group={}, md5={}, listener={} ",
                name, (finishNotify - startNotify), dataId, group, md5, listener);
    }

/**
     * Fetch the updated dataId list from server.
     *
     * @param probeUpdateString       updated attribute string value.
     * @param isInitializingCacheList initial cache lists.
     * @return The updated dataId list(ps: it maybe null).
     * @throws IOException Exception.
     */
    List<String> checkUpdateConfigStr(String probeUpdateString, boolean isInitializingCacheList) throws Exception {

        Map<String, String> params = new HashMap<String, String>(2);
        params.put(Constants.PROBE_MODIFY_REQUEST, probeUpdateString);
        Map<String, String> headers = new HashMap<String, String>(2);
        // 这里在请求头中塞了一个 "Long-Pulling-Timeout" 标识，这个是服务端长轮询的判断条件，非常重要
        headers.put("Long-Pulling-Timeout", "" + timeout);

        // told server do not hang me up if new initializing cacheData added in
        if (isInitializingCacheList) {
            headers.put("Long-Pulling-Timeout-No-Hangup", "true");
        }

        if (StringUtils.isBlank(probeUpdateString)) {
            return Collections.emptyList();
        }

        try {
            // In order to prevent the server from handling the delay of the client's long task,
            // increase the client's read timeout to avoid this problem.

            long readTimeoutMs = timeout + (long) Math.round(timeout >> 1);
            // 调用服务端接口：/v1/cs/configs/listener
            HttpRestResult<String> result = agent
                .httpPost(Constants.CONFIG_CONTROLLER_PATH + "/listener", headers, params, agent.getEncode(),
                    readTimeoutMs);

            if (result.ok()) {
                setHealthServer(true);
                return parseUpdateDataIdResponse(result.getData());
            } else {
                setHealthServer(false);
                LOGGER.error("[{}] [check-update] get changed dataId error, code: {}", agent.getName(),
                    result.getCode());
            }
        } catch (Exception e) {
            setHealthServer(false);
            LOGGER.error("[" + agent.getName() + "] [check-update] get changed dataId exception", e);
            throw e;
        }
        return Collections.emptyList();
    }

/**
     * Add LongPollingClient.
     * 该方法中，对 md5 进行比较，如果不相同，说明文件内容已经变更，调用 generateResponse() 直接响应客户端。
     * 如果配置项没有变更，创建一个 ClientLongPolling 对象，交给定时线程池处理
     *
     * @param req              HttpServletRequest.
     * @param rsp              HttpServletResponse.
     * @param clientMd5Map     clientMd5Map.
     * @param probeRequestSize probeRequestSize.
     */
    public void addLongPollingClient(HttpServletRequest req, HttpServletResponse rsp, Map<String, String> clientMd5Map,
            int probeRequestSize) {

        // str 就是客户端提交请求的超时时间,默认为 30s
        String str = req.getHeader(LongPollingService.LONG_POLLING_HEADER);
        String noHangUpFlag = req.getHeader(LongPollingService.LONG_POLLING_NO_HANG_UP_HEADER);
        String appName = req.getHeader(RequestUtil.CLIENT_APPNAME_HEADER);
        String tag = req.getHeader("Vipserver-Tag");
        int delayTime = SwitchService.getSwitchInteger(SwitchService.FIXED_DELAY_TIME, 500);

        // Add delay time for LoadBalance, and one response is returned 500 ms in advance to avoid client timeout.
        //实际的超时时间是 29.5s,被减去了 500ms,主要是考虑到网络请求等耗时
        long timeout = Math.max(10000, Long.parseLong(str) - delayTime);
        if (isFixedPolling()) {
            timeout = Math.max(10000, getFixedPollingInterval());
            // Do nothing but set fix polling timeout.
        } else {
            long start = System.currentTimeMillis();
            // 比较客户端文件的 md5 和服务端文件的 md5,如果不一样,直接返回客户端配置项有变更
            List<String> changedGroups = MD5Util.compareMd5(req, rsp, clientMd5Map);
            if (changedGroups.size() > 0) {
                generateResponse(req, rsp, changedGroups);
                LogUtil.CLIENT_LOG.info("{}|{}|{}|{}|{}|{}|{}", System.currentTimeMillis() - start, "instant",
                        RequestUtil.getRemoteIp(req), "polling", clientMd5Map.size(), probeRequestSize,
                        changedGroups.size());
                return;
            } else if (noHangUpFlag != null && noHangUpFlag.equalsIgnoreCase(TRUE_STR)) {
                LogUtil.CLIENT_LOG.info("{}|{}|{}|{}|{}|{}|{}", System.currentTimeMillis() - start, "nohangup",
                        RequestUtil.getRemoteIp(req), "polling", clientMd5Map.size(), probeRequestSize,
                        changedGroups.size());
                return;
            }
        }
        String ip = RequestUtil.getRemoteIp(req);

        // Must be called by http thread, or send response.
        final AsyncContext asyncContext = req.startAsync();

        // AsyncContext.setTimeout() is incorrect, Control by oneself
        asyncContext.setTimeout(0L);

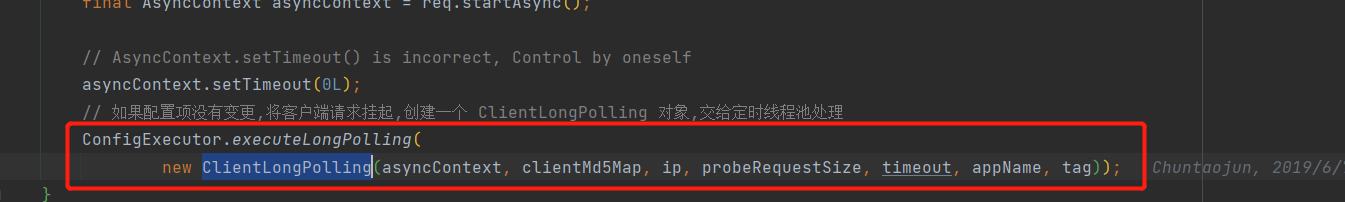

        // 如果配置项没有变更,将客户端请求挂起,创建一个 ClientLongPolling 对象,交给定时线程池处理
        ConfigExecutor.executeLongPolling(
                new ClientLongPolling(asyncContext, clientMd5Map, ip, probeRequestSize, timeout, appName, tag));
    }

@Override
        public void run() {
            asyncTimeoutFuture = ConfigExecutor.scheduleLongPolling(new Runnable() {
                @Override
                public void run() {
                    try {
                        getRetainIps().put(ClientLongPolling.this.ip, System.currentTimeMillis());

                        // Delete subsciber's relations.
                        allSubs.remove(ClientLongPolling.this);

                        if (isFixedPolling()) {
                            LogUtil.CLIENT_LOG
                                    .info("{}|{}|{}|{}|{}|{}", (System.currentTimeMillis() - createTime), "fix",
                                            RequestUtil.getRemoteIp((HttpServletRequest) asyncContext.getRequest()),
                                            "polling", clientMd5Map.size(), probeRequestSize);
                            // 校验 md5 ，判断配置文件内容是否变更
                            List<String> changedGroups = MD5Util
                                    .compareMd5((HttpServletRequest) asyncContext.getRequest(),
                                            (HttpServletResponse) asyncContext.getResponse(), clientMd5Map);
                            if (changedGroups.size() > 0) {
                                // 有变动
                                sendResponse(changedGroups);
                            } else {
                                // 没有变动
                                sendResponse(null);
                            }
                        } else {
                            LogUtil.CLIENT_LOG
                                    .info("{}|{}|{}|{}|{}|{}", (System.currentTimeMillis() - createTime), "timeout",
                                            RequestUtil.getRemoteIp((HttpServletRequest) asyncContext.getRequest()),
                                            "polling", clientMd5Map.size(), probeRequestSize);
                            sendResponse(null);
                        }
                    } catch (Throwable t) {
                        LogUtil.DEFAULT_LOG.error("long polling error:" + t.getMessage(), t.getCause());
                    }

                }

            }, timeoutTime, TimeUnit.MILLISECONDS);

            // ②将当前的长轮询对象放到 allSubs 中
            allSubs.add(this);
        }

/**
     * Adds or updates non-aggregated data.

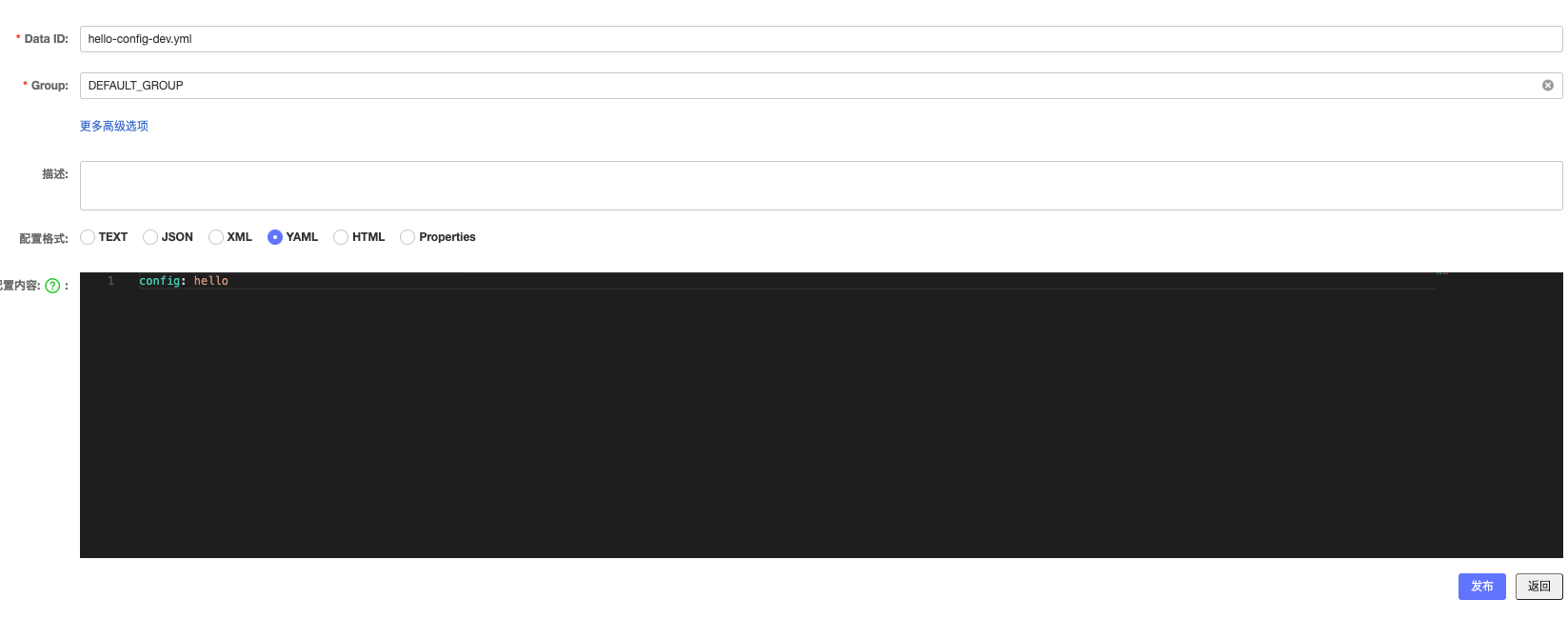

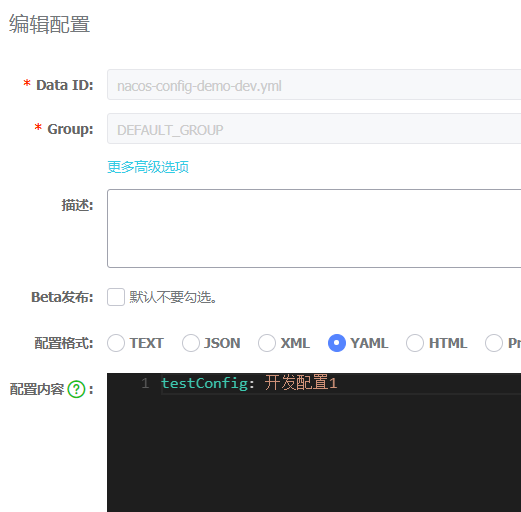

     * 用户主动发起配置变更
     *
     * @throws NacosException NacosException.
     */
    @PostMapping
    @Secured(action = ActionTypes.WRITE, parser = ConfigResourceParser.class)
    public Boolean publishConfig(HttpServletRequest request, HttpServletResponse response,
            @RequestParam(value = "dataId") String dataId, @RequestParam(value = "group") String group,
            @RequestParam(value = "tenant", required = false, defaultValue = StringUtils.EMPTY) String tenant,
            @RequestParam(value = "content") String content, @RequestParam(value = "tag", required = false) String tag,
            @RequestParam(value = "appName", required = false) String appName,
            @RequestParam(value = "src_user", required = false) String srcUser,
            @RequestParam(value = "config_tags", required = false) String configTags,
            @RequestParam(value = "desc", required = false) String desc,
            @RequestParam(value = "use", required = false) String use,
            @RequestParam(value = "effect", required = false) String effect,
            @RequestParam(value = "type", required = false) String type,
            @RequestParam(value = "schema", required = false) String schema) throws NacosException {

        final String srcIp = RequestUtil.getRemoteIp(request);
        final String requestIpApp = RequestUtil.getAppName(request);
        srcUser = RequestUtil.getSrcUserName(request);
        // check tenant
        ParamUtils.checkTenant(tenant);
        ParamUtils.checkParam(dataId, group, "datumId", content);
        ParamUtils.checkParam(tag);
        Map<String, Object> configAdvanceInfo = new HashMap<String, Object>(10);
        MapUtils.putIfValNoNull(configAdvanceInfo, "config_tags", configTags);
        MapUtils.putIfValNoNull(configAdvanceInfo, "desc", desc);
        MapUtils.putIfValNoNull(configAdvanceInfo, "use", use);
        MapUtils.putIfValNoNull(configAdvanceInfo, "effect", effect);
        MapUtils.putIfValNoNull(configAdvanceInfo, "type", type);
        MapUtils.putIfValNoNull(configAdvanceInfo, "schema", schema);
        ParamUtils.checkParam(configAdvanceInfo);

        if (AggrWhitelist.isAggrDataId(dataId)) {
            LOGGER.warn("[aggr-conflict] {} attemp to publish single data, {}, {}", RequestUtil.getRemoteIp(request),
                    dataId, group);
            throw new NacosException(NacosException.NO_RIGHT, "dataId:" + dataId + " is aggr");
        }

        final Timestamp time = TimeUtils.getCurrentTime();
        String betaIps = request.getHeader("betaIps");
        ConfigInfo configInfo = new ConfigInfo(dataId, group, tenant, appName, content);
        configInfo.setType(type);
        if (StringUtils.isBlank(betaIps)) {
            if (StringUtils.isBlank(tag)) {
                persistService.insertOrUpdate(srcIp, srcUser, configInfo, time, configAdvanceInfo, true);
                //  调用通知方法 notifyConfigChange
                ConfigChangePublisher
                        .notifyConfigChange(new ConfigDataChangeEvent(false, dataId, group, tenant, time.getTime()));
            } else {
                persistService.insertOrUpdateTag(configInfo, tag, srcIp, srcUser, time, true);
                //  调用通知方法 notifyConfigChange
                ConfigChangePublisher.notifyConfigChange(
                        new ConfigDataChangeEvent(false, dataId, group, tenant, tag, time.getTime()));
            }
        } else {
            // beta publish
            persistService.insertOrUpdateBeta(configInfo, betaIps, srcIp, srcUser, time, true);
            //  调用通知方法 notifyConfigChange
            ConfigChangePublisher
                    .notifyConfigChange(new ConfigDataChangeEvent(true, dataId, group, tenant, time.getTime()));
        }
        ConfigTraceService
                .logPersistenceEvent(dataId, group, tenant, requestIpApp, time.getTime(), InetUtils.getSelfIP(),
                        ConfigTraceService.PERSISTENCE_EVENT_PUB, content);
        return true;
    }

@Autowired
    public AsyncNotifyService(ServerMemberManager memberManager) {
        this.memberManager = memberManager;

        // Register ConfigDataChangeEvent to NotifyCenter.
        NotifyCenter.registerToPublisher(ConfigDataChangeEvent.class, NotifyCenter.ringBufferSize);

        // Register A Subscriber to subscribe ConfigDataChangeEvent.
        NotifyCenter.registerSubscriber(new Subscriber() {

            @Override
            public void onEvent(Event event) {
                // Generate ConfigDataChangeEvent concurrently
                if (event instanceof ConfigDataChangeEvent) {
                    ConfigDataChangeEvent evt = (ConfigDataChangeEvent) event;
                    long dumpTs = evt.lastModifiedTs;
                    String dataId = evt.dataId;
                    String group = evt.group;
                    String tenant = evt.tenant;
                    String tag = evt.tag;
                    Collection<Member> ipList = memberManager.allMembers();

                    // In fact, any type of queue here can be
                    Queue<NotifySingleTask> queue = new LinkedList<NotifySingleTask>();
                    for (Member member : ipList) {
                        queue.add(new NotifySingleTask(dataId, group, tenant, tag, dumpTs, member.getAddress(),
                                evt.isBeta));
                    }
                    // 创建了一个 AsyncTask 对象,用于通知配置文件有变更的操作
                    ConfigExecutor.executeAsyncNotify(new AsyncTask(nacosAsyncRestTemplate, queue));
                }
            }

            @Override
            public Class<? extends Event> subscribeType() {
                return ConfigDataChangeEvent.class;
            }
        });
    }

@Override
        public void run() {
            executeAsyncInvoke();
        }

private void executeAsyncInvoke() {
            while (!queue.isEmpty()) {
                NotifySingleTask task = queue.poll();
                String targetIp = task.getTargetIP();
                if (memberManager.hasMember(targetIp)) {
                    // start the health check and there are ips that are not monitored, put them directly in the notification queue, otherwise notify
                    boolean unHealthNeedDelay = memberManager.isUnHealth(targetIp);
                    if (unHealthNeedDelay) {
                        // target ip is unhealthy, then put it in the notification list
                        ConfigTraceService.logNotifyEvent(task.getDataId(), task.getGroup(), task.getTenant(), null,
                                task.getLastModified(), InetUtils.getSelfIP(), ConfigTraceService.NOTIFY_EVENT_UNHEALTH,
                                0, task.target);
                        // get delay time and set fail count to the task
                        asyncTaskExecute(task);
                    } else {
                        Header header = Header.newInstance();
                        header.addParam(NotifyService.NOTIFY_HEADER_LAST_MODIFIED, String.valueOf(task.getLastModified()));
                        header.addParam(NotifyService.NOTIFY_HEADER_OP_HANDLE_IP, InetUtils.getSelfIP());
                        if (task.isBeta) {
                            header.addParam("isBeta", "true");
                        }
                        // 这里会调用 /v1/cs/communication/dataChange 接口,通知配置有变动
                        restTemplate.get(task.url, header, Query.EMPTY, String.class, new AsyncNotifyCallBack(task));
                    }
                }
            }
        }

@GetMapping("/dataChange")
    public Boolean notifyConfigInfo(HttpServletRequest request, @RequestParam("dataId") String dataId,
            @RequestParam("group") String group,
            @RequestParam(value = "tenant", required = false, defaultValue = StringUtils.EMPTY) String tenant,
            @RequestParam(value = "tag", required = false) String tag) {
        dataId = dataId.trim();
        group = group.trim();
        String lastModified = request.getHeader(NotifyService.NOTIFY_HEADER_LAST_MODIFIED);
        long lastModifiedTs = StringUtils.isEmpty(lastModified) ? -1 : Long.parseLong(lastModified);
        String handleIp = request.getHeader(NotifyService.NOTIFY_HEADER_OP_HANDLE_IP);
        String isBetaStr = request.getHeader("isBeta");
        if (StringUtils.isNotBlank(isBetaStr) && trueStr.equals(isBetaStr)) {
            // 调用 dump() 方法
            dumpService.dump(dataId, group, tenant, lastModifiedTs, handleIp, true);
        } else {
            dumpService.dump(dataId, group, tenant, tag, lastModifiedTs, handleIp);
        }
        return true;
    }

public void dump(String dataId, String group, String tenant, long lastModified, String handleIp, boolean isBeta) {
        String groupKey = GroupKey2.getKey(dataId, group, tenant);
        // 主要方法在这里，创建了一个 task 任务
        dumpTaskMgr.addTask(groupKey, new DumpTask(groupKey, lastModified, handleIp, isBeta));
    }

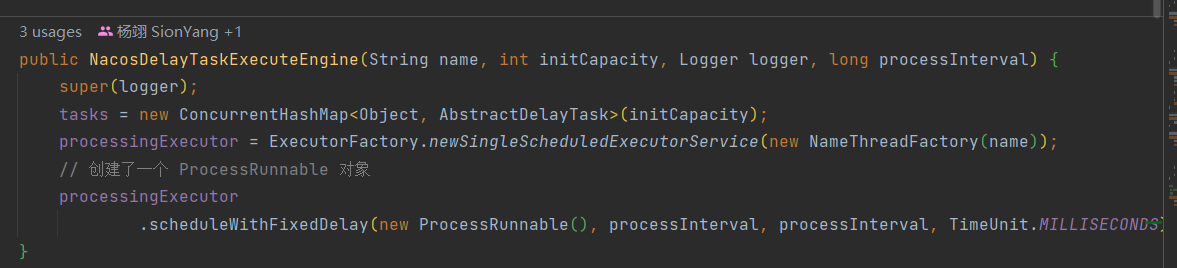

@Override
        public void run() {
            try {
                processTasks();
            } catch (Throwable e) {
                getEngineLog().error(e.toString(), e);
            }
        }

protected void processTasks() {
        Collection<Object> keys = getAllTaskKeys();
        for (Object taskKey : keys) {
            AbstractDelayTask task = removeTask(taskKey);
            if (null == task) {
                continue;
            }
            // 获取任务处理器
            NacosTaskProcessor processor = getProcessor(taskKey);
            if (null == processor) {
                getEngineLog().error("processor not found for task, so discarded. " + task);
                continue;
            }
            try {
                // ReAdd task if process failed
                // 调用 process 方法，重要方法
                if (!processor.process(task)) {
                    retryFailedTask(taskKey, task);
                }
            } catch (Throwable e) {
                getEngineLog().error("Nacos task execute error : " + e.toString(), e);
                retryFailedTask(taskKey, task);
            }
        }
    }

@Override
    public boolean process(NacosTask task) {
        final PersistService persistService = dumpService.getPersistService();
        DumpTask dumpTask = (DumpTask) task;
        String[] pair = GroupKey2.parseKey(dumpTask.getGroupKey());
        String dataId = pair[0];
        String group = pair[1];
        String tenant = pair[2];
        long lastModified = dumpTask.getLastModified();
        String handleIp = dumpTask.getHandleIp();
        boolean isBeta = dumpTask.isBeta();
        String tag = dumpTask.getTag();

        ConfigDumpEvent.ConfigDumpEventBuilder build = ConfigDumpEvent.builder().namespaceId(tenant).dataId(dataId)
                .group(group).isBeta(isBeta).tag(tag).lastModifiedTs(lastModified).handleIp(handleIp);
        // 如果是 beta 版本，这里不考虑
        if (isBeta) {
            // beta发布，则dump数据，更新beta缓存
            ConfigInfo4Beta cf = persistService.findConfigInfo4Beta(dataId, group, tenant);

            build.remove(Objects.isNull(cf));
            build.betaIps(Objects.isNull(cf) ? null : cf.getBetaIps());
            build.content(Objects.isNull(cf) ? null : cf.getContent());

            return DumpConfigHandler.configDump(build.build());
        } else {
            // 如果 tag 不为空，这里不考虑
            if (StringUtils.isBlank(tag)) {
                ConfigInfo cf = persistService.findConfigInfo(dataId, group, tenant);

                build.remove(Objects.isNull(cf));
                build.content(Objects.isNull(cf) ? null : cf.getContent());
                build.type(Objects.isNull(cf) ? null : cf.getType());

                return DumpConfigHandler.configDump(build.build());
            } else {

                ConfigInfo4Tag cf = persistService.findConfigInfo4Tag(dataId, group, tenant, tag);

                build.remove(Objects.isNull(cf));
                build.content(Objects.isNull(cf) ? null : cf.getContent());

                return DumpConfigHandler.configDump(build.build());
            }
        }
    }
